Bulletproof Panel press from UHMWPE Fabric is lightweight, float on water to against NIJ 0108.01 level III + MSC (RF1) for Armoured Car, Ship, Vehicle, Door, Chair using, make to order thickness (3-23mm) and size (max to 1600x2400mm)

The bulletproof panel is designed for NIJ level IIIA, III up to RF1  protection for bulletproof cars, ships, and vehicles.

Additional information

Specification of Bulletproof Panel, Amoured Vehicle Panel

The anti-ballistic vehicle panel made from Hard Armor Applications UHMWPE UD has high performance and lightweight characters. It can float on water so, it can be applied on police ships, bulletproof cars, and armored vehicles. Another side, it also can make other security items like anti-ballistic doors, chairs, tables, and so on.

Today, we can provide NIJ 0108.01 level III+ (NATO ball plus 7.62x39mm MSC) less than 20mm or thinner if you composite with other materials. We can provide a full-size flat panel with 1200x2000mm or 1500x2000mm and also, pre-cut for you according to your design.

The bulletproof panel is made from pure PE for NIJ levels protection according to NIJ 0108.01 standard.

  • Flat shape
  • Standard size 1200x2000mm
  • OEM options
    • Size to 1500x2000mm
    • Coating with color
    • Precut according to shape

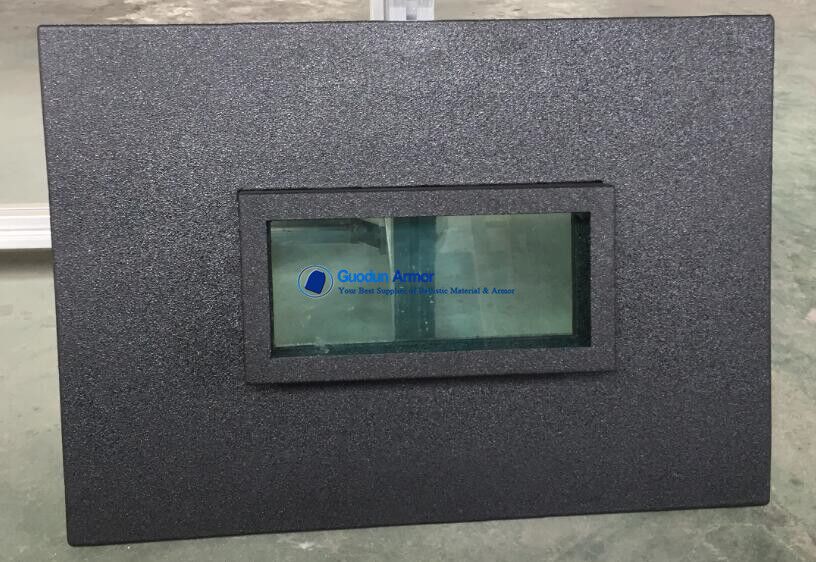

    • With view window
    • Thickness from 3mm – 22mm for different level
  •

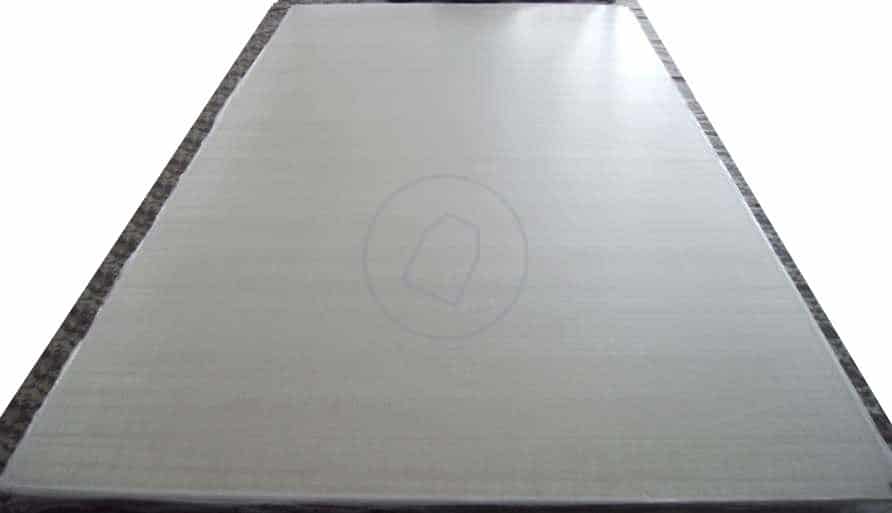

bulletproof panel armoured vehicle (9)
Armoured Vehicle Panel
Model Number: PE-9mmPE-IIIAPE-IIIPE-III+
Structure:100% Hard Armor Applications UHMwPE UD
Size:1200x2000mm1200x2000mm (Option 1500x2000mm)
Thickness:≈4mm≈5mm≈6mm≈20mm≈20mm≈23mm
Weight per sq. meter (m2):≈4Kg/m2≈4.5Kg/m2≈5.5Kg/m2≈20Kg/m2≈18Kg/m2≈22Kg/m2
Weight per Panel:≈10.5Kg≈12Kg≈14.5Kg≈53Kg≈47.5Kg≈58Kg
Curve Style:FlatFlatFlatFlatFlatFlat
Tested Performance:

 (according to NIJ 0108.01 standard Levels)

Protect Level9mmIIIAIIIAIIIIII+MSCIII+MSC
9x19mm FMJ @ 426m/s (1400ft/s)PassPassPassPassPassPass
.44 Magnum Lead SWC @ 426m/s (1400ft/s)PassPassPassPassPass
7.62x51mm 308 Winchester @ 838m/s (2750ft/s)PassPassPass
7.62x39mm MSC @ 710m/sPassPass
5.56x45mm SS109

Application of Bulletproof Panel, Amoured Vehicle Panel

car, bentley, continental-937414.jpg

VIP Bulletproof Car

police, officer, ambulance-4858592.jpg

POLICE Bulletproof Car

police, car, vehicle-4453158.jpg

Bulletproof Vehicle

helicopter free, military, helicopter-2198359.jpg

Helicopter / Jet

aircraft carrier, ships, battle ships-1016.jpg

Military Bulletproof Ship

door, open, doorway-1590024.jpg

Bulletproof Door / Chair
