Carbon Fabric made from 1K/3K/6K/12K Carbon fiber with 120g/m2 - 480g/m2 in Plain, Twill for Airspace, Auto Motor, Sport Products

Additional information

Specification of 1K/3K/6K/12K Carbon Fabric

Carbon fiber is a special fiber with carbon content above 95% which is based on PAN produced through pre-oxidation, carbonization, and graphitization. Its density is less than 1/4 of steel while strength is 20 times if steel. It not only has characteristics of carbon material but also has workability, the flexibility of textile fibers.

Carbon fabric is an industrial raw material commonly used in today’s industrialized countries. The product owns lightweight, high strength, high modulus, up to 2000℃ heat resistance, corrosion resistance, and fatigue resistance characteristic. Due to their excellent chemical and physical properties, carbon fiber products are widely used in various industries.

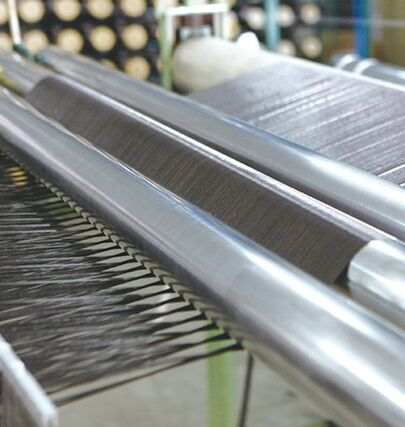

carbon fabric (1)
Model
PC120
PC200
PC240
PC320
PC360
PC400
PC480
Denier
1K
3K
3K
6K
6K
12K
12K
Warp
9
5
6
4
4.5
2.5
3
Weft
9
5
6
4
4.5
2.5
3
Thickness
≈0.19mm
≈0.26mm
≈0.32mm
≈0.42mm
≈0.48mm
≈0.53mm
≈0.64mm
Area Density(m2)
≈120g
≈200g
≈240g
≈320g
≈360g
≈400g
≈480g
Weave Structure
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Raw Material100% Carbon Fiber
Resin CoatNo coat as standard (or backside coat make to order)
Roll Width1-3 meter make to order
Roll Length50+ meters continuous in roll
Designed For:Aerospace, Sport, Auto Parts, Fire Protection

Application of 1K/3K/6K/12K Carbon Fabric

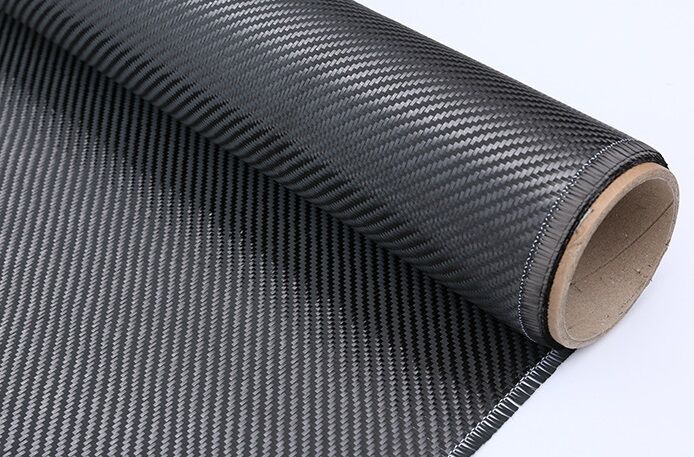

carbon fabric (2)

Main using for:

  • Aerospace: Fuselage, Rudder.
  • Sports equipment: Automobile parts, fish pole, baseball bat, sled, speedboat, badminton racket, etc.
  • Industry: Engine component, reinforced material of concert structure, air-blower vane, driving shaft, etc.
  • Fire protection: Apply for fireproof clothing production of the army, fire forces, steel plants, etc.
