Level IV Bulletproof Plate made from PE composite with ceramic against NIJ 0101.06 level IV, AK47 7.62x39mm API for Police / Military Bulletproof Vest, Level 4 Bulletproof Jacket, Level IV Body Armor Protection

The monolithic bulletproof plate is designed for NIJ level IV protection with a bulletproof vest or plate carrier for police or military protective using.

Additional information

Protect Level

NIJ 0101.06 level IV, NIJ 0101.07 level RF3

Against Ammo

7.62x39mm API, 7.62x51mm NATO ball, 7.62x53mm AP

Specification of Bulletproof Plate

The bulletproof plate is made from PE composite with mosaic alumina oxide ceramic tiles for NIJ level IV protection stand-alone or in connection with an IIIA vest. For more, see How to make a bulletproof plate?

  • Single curve shape
  • Waterproof fabric cover
  • Strike Face print on face as standard
  • Standard size 250x300mm
  • Ceramic cover area more than 80%
  • Weight around 2.95kg/pc
  • Packing with 10pcs per carton
  • OEM options
    • Use silicon carbide reduces weight to 2.65kg/pc
    • Use boron carbide reduces weight to 2.15kg/pc
    • Multi curve shape if required
    • Size from 100x100mm up to 350x450mm
    • Polyurea coating on face
    • No printing or customized label
  •

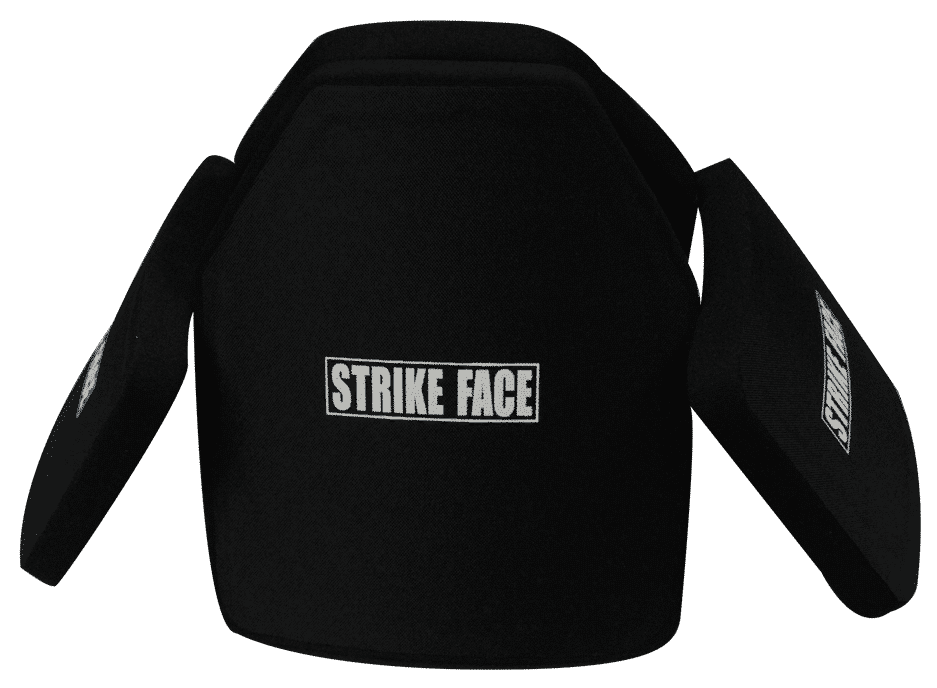

bulletproof plates with big and small size
Bulletproof Plate

Certificate of HPPE Bulletproof Plate
