Bulletproof Plate made from PE composite with ceramic against NIJ 0101.06 level III 7.62x51mm NATO ball, AK47 7.62x39mm MSC, 5.56x45mm SS109 (NIJ 0101.07 RF2) for Police / Military Bulletproof Vest, Level III+ Bulletproof Jacket, Level 3 Body Armor Protection

The ceramic bulletproof plate is designed for NIJ level III++ protection with a bulletproof vest or plate carrier for police or military protective using.

Additional information

Protect Level

NIJ 0101.06 level III plus MSC & SS109, NIJ 0101.07 level RF2

Against Ammo

5.56x45mm SS109, 7.62x39mm MSC, 7.62x51mm NATO ball

Specification of Bulletproof Plate

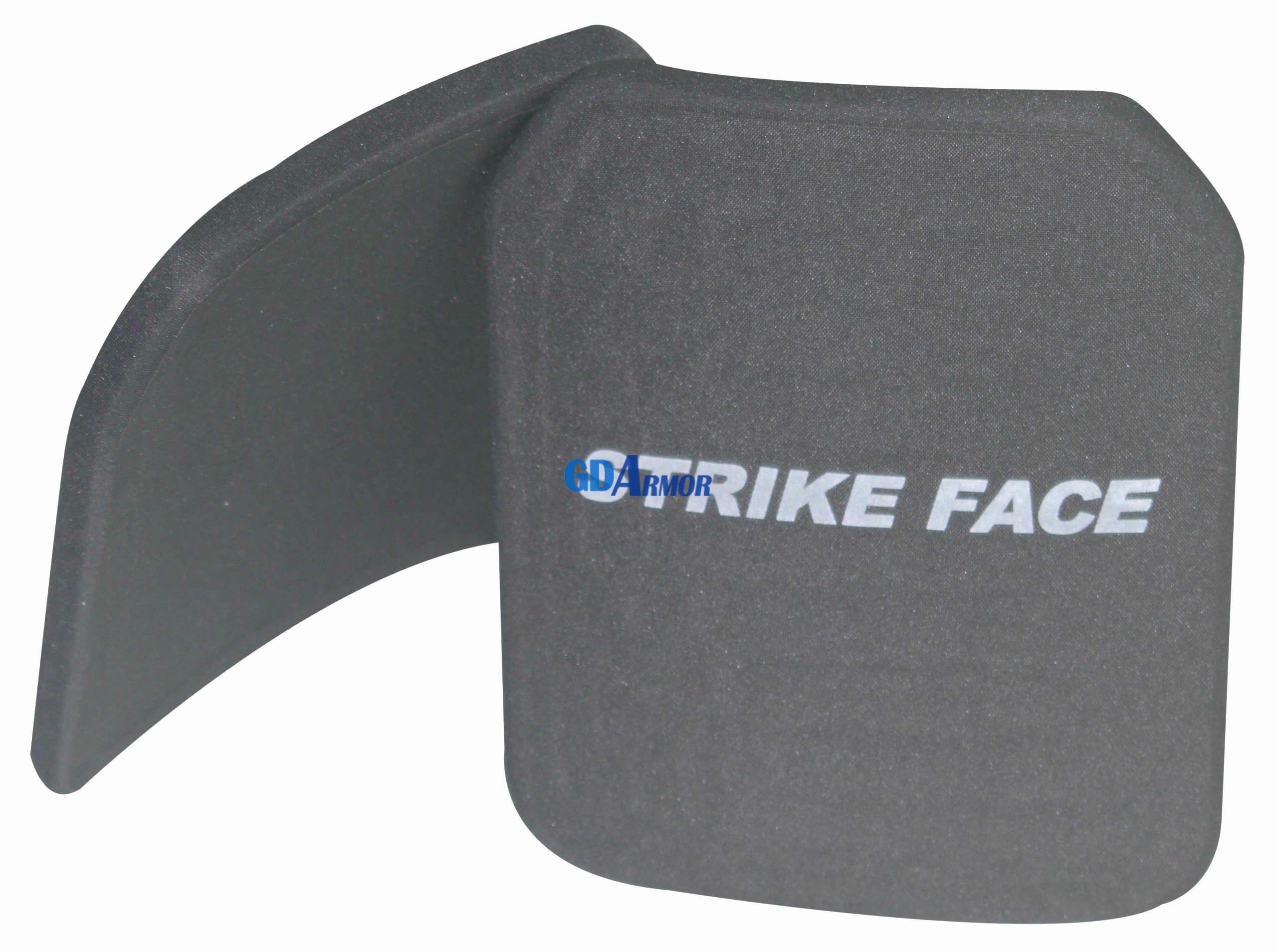

The bulletproof plate is made from PE composite with mosaic silicon carbide ceramic tiles for NIJ level III++ protection stand-alone or in connection with an IIIA vest. For more, see How to make a bulletproof plate?

  • Single curve shape
  • Waterproof fabric cover
  • Strike Face print on face as standard
  • Standard size 250x300mm
  • Ceramic cover area more than 80%
  • Weight around 2.15kg/pc
  • Packing with 10pcs per carton
  • OEM options
    • Cut ceramic cover to reduce weight
    • Use alumina oxide ceramic (weight ~2.45kg/pc)
    • Multi curve shape if required
    • Size from 100x100mm up to 350x450mm
    • Polyurea coating on face
    • No printing or customized label
  •
bulletproof plate sic plate m size
Bulletproof Plate

Types of Bulletproof Plate - NIJ level III+/RF2

Model Number: PAIIIPSIIIPSIII-ICW
Reference Protect Level:NIJ level III++ / RF2NIJ level III++ / RF2NIJ level III++ / RF2
Structure: PE + Aluminum OxidePE + Silicon CarbidePE + Silicon Carbide
Weight of 250x300mm Plate:≈2.3Kg≈2.1Kg≈1.7Kg
Thickness:≈18mm≈18mm≈20mm
Curve Style:Single / Multi curveSingle / Multi curveSingle / Multi curve
Ceramic Style: MosaicMosaic / MonolithicMosaic / Monolithic
Cover Style: Waterproof fabric / Polyurea coat or by order
Option Plate Size:200x250mm, 230x280mm,240x290mm, 250x300mm, 300x350mm, 350x400mm
Option Sides Plate Size:150x200mm, 200x200mm, 210x220mm, 220x250mm or by order
Tested Performance:(according to NIJ 0101.06 standard Level III)
Testing conditionStand AloneStand AloneWith IIIA vest
7.62x51mm M80 x 6 shotsPassPassPass
7.62x39mm MSC x 6 shotsPassPassPass
5.56x45mm SS109 x 6 shotsPassPassPass

Certificate of HPPE Bulletproof Plate
