Monolithic Bulletproof Plate made from PE composite with Monolithic Silicon Carbide against NIJ 0101.06 level IV, AK47 7.62x39mm API for Police / Military Bulletproof Vest, Level 4 Bulletproof Jacket, Level IV Body Armor Protection

The monolithic bulletproof plate is designed for NIJ level IV protection with a bulletproof vest or plate carrier for police or military protective using.

Additional information

Protect Level

NIJ 0101.06 level IV, NIJ 0101.07 level RF3

Against Ammo

7.62x39mm API, 7.62x51mm NATO ball, 7.62x53mm AP

Specification of Bulletproof Plate

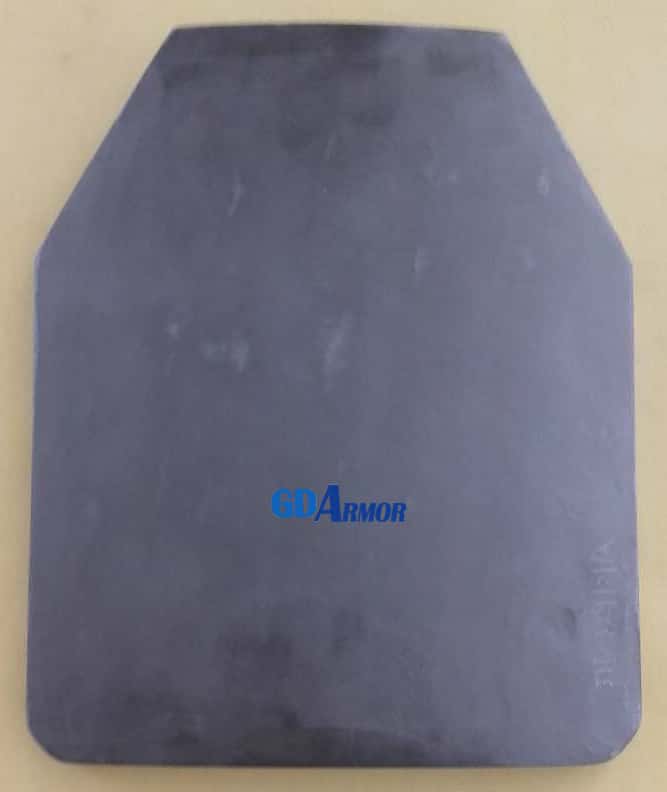

The bulletproof plate is made from PE composite with monolithic silicon carbide ceramics for NIJ level IV protection stand-alone or in connection with an IIIA vest. For more, see How to make a bulletproof plate?

  • Single curve shape
  • Polyurea coating on face
  • Strike Face print on face as standard
  • Standard size 250x300mm
  • Ceramic cover area more than 80%
  • Weight around 2.6kg/pc
  • Packing with 10pcs per carton
  • OEM options
    • Use alumina oxide, or boron carbide ceramics tiles
    • Multi curve when using ceramic tiles
    • Size from 100x100mm up to 350x450mm
    • Waterproof fabric cover
    • No printing or customized label
  •
Bulletproof Plate
Bulletproof Plate

Types of Bulletproof Plate - NIJ level IV

Model Number: PAIVPSIVPAIV-ICWPSIV-ICW
Structure: PE + Aluminum OxidePE + Silicon CarbidePE + Aluminum OxidePE + Silicon Carbide
Weight of 250x300mm Plate:≈3.1Kg≈2.65Kg≈2.95Kg≈2.5Kg
Thickness:≈22mm≈22mm≈20mm≈20mm
Curve Style:Single / Multi curveSingle / Multi curveSingle / Multi curveSingle / Multi curve
Ceramic Style: MosaicMosaic / MonolithicMosaicMosaic / Monolithic
Cover Style: Waterproof fabric / Polyurea coat or by order
Option Plate Size:200x250mm, 230x280mm,240x290mm, 250x300mm, 300x350mm, 350x400mm
Option Sides Plate Size:150x200mm, 200x200mm, 210x220mm, 220x250mm or by order
Tested Performance:(according to NIJ 0101.06 standard Level IV)
Testing conditionStand AloneStand AloneWith IIIA vestWith IIIA vest
7.62x39mm API x 6 shotsPassPassPassPass
7.62×53/54mm AP x 3 shotsPassPassPassPass
.30 (7.62x63mm) AP x 1 shotsPassPassPassPass

Certificate of HPPE Bulletproof Plate
