Lightweight Bulletproof Plate made from pure PE with Single / Multi Curve against NIJ 0101.06 level III 7.62x51mm NATO ball, or Plus AK47 7.62x39mm MSC (RF1) for Police / Military Bulletproof Vest, Level III Bulletproof Jacket, Level 3 Body Armor Protection

The lightweight PE bulletproof plate is designed for NIJ level III protection with a bulletproof vest or plate carrier for police or military protective using.

Additional information

Protect Level

NIJ 0101.06 level III, NIJ 0101.07 level RF1

Against Ammo

7.62x39mm MSC, 7.62x51mm NATO ball

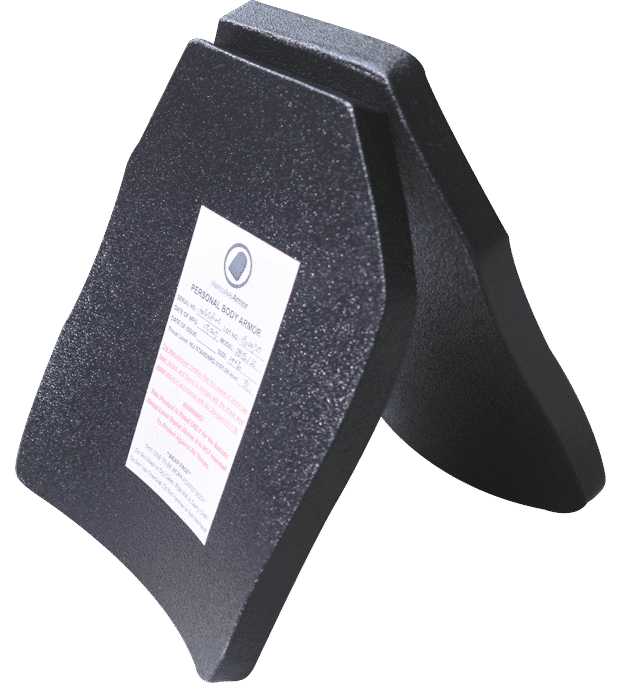

Specification of Bulletproof Plate

The bulletproof plate is made from PE composite with monolithic silicon carbide ceramics for NIJ level III protection stand-alone or in connection with an IIIA vest. For more, see How to make a bulletproof plate?

  • Single curve shape
  • Polyurea coating on face
  • Strike Face print on face as standard
  • Standard size 250x300mm
  • Meet NIJ level III plus AK47 MSC
  • Weight around 1.5kg/pc
  • Packing with 10pcs per carton
  • OEM options
    • Multi curve shape
    • Size from 100x100mm up to 350x450mm
    • Waterproof fabric cover
    • No printing or customized label
  •
Bulletproof Plate
Bulletproof Plate

Types of Bulletproof Plate - 100% PE

Model Number: PEIIIPEIII+PEIII++
Reference Protect Level:NIJ level IIINIJ level III+MSC / RF1NIJ level III+MSC+SS109 / RF2
Structure: 100% PE100% PE100% PE
Weight of 250x300mm Plate:1.1Kg-1.3Kg1.1Kg-1.5kg ≈1.65Kg
Thickness:≈20mm≈20mm≈24mm
Curve Style:Single / MultiSingle / Multi curveSingle / Multi curve
Cover Style: Waterproof fabric / Polyurea coat or by order
Option Plate Size:200x250mm, 230x280mm,240x290mm, 250x300mm, 300x350mm, 350x400mm
Option Sides Plate Size:150x200mm, 200x200mm, 210x220mm, 220x250mm or by order
Tested Performance:(according to NIJ 0101.06 standard Level III)
Testing conditionStand AloneStand AloneStand Alone
7.62x51mm M80 x 6 shotsPassPassPass
7.62x39mm MSC x 6 shotsPassPass
5.56x45mm SS109 x 6 shotsPass

Certificate of HPPE Bulletproof Plate
