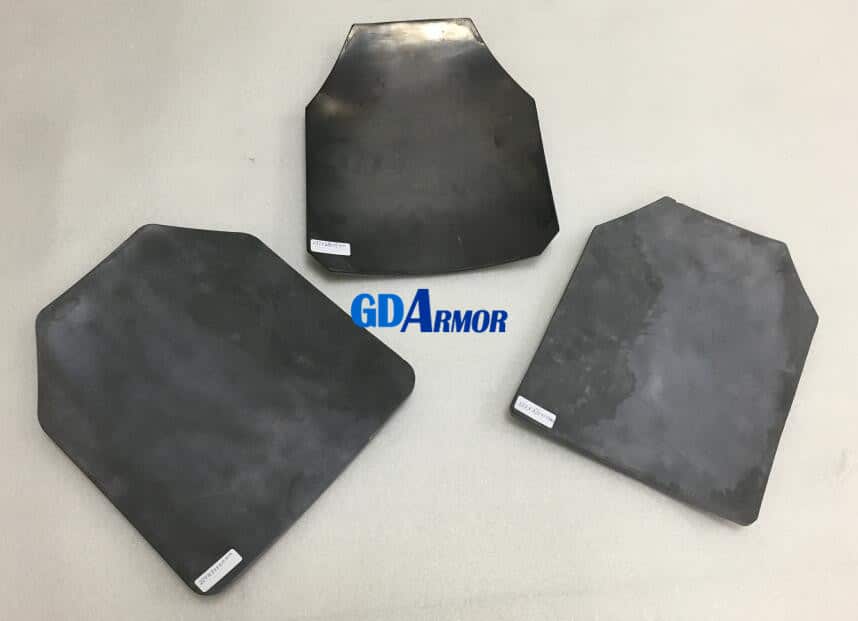

Bulletproof Ceramic made from Boron Carbide (B4C), Silicon Carbide (SiC), Aluminum Oxide (Al2O3) with Monolithic or Hexagon, Square Tiles for Body Armor Manufactory Composite Bulletproof Plate, Hard Armor Vehicle Panel

The monolithic bulletproof plate is designed for NIJ level IV protection with a bulletproof vest or plate carrier for police or military protective using.

Additional information

Protect Level

NIJ 0101.06 level IV, NIJ 0101.07 level RF3

Against Ammo

7.62x39mm API, 7.62x51mm NATO ball, 7.62x53mm AP

Specification of Silicon Carbide Ceramic Tiles / Monolithic

Structure: Pressureless sintered silicon carbide ceramic
Material: Silicon Carbide (SiC)
Shape: Hexagonal, Monolithic, or Square
Specific gravity: greater than or equal to 3.12 g/cm3
Elastic modulus: 410 GPa
Porosity: less than or equal to 2.5%
Flexural strength: 400 MPa
Vickers hardness: 25 GPa
Fracture toughness: 3.5 Mpa.m1/2
Packing: blister packing, carton, and pallet

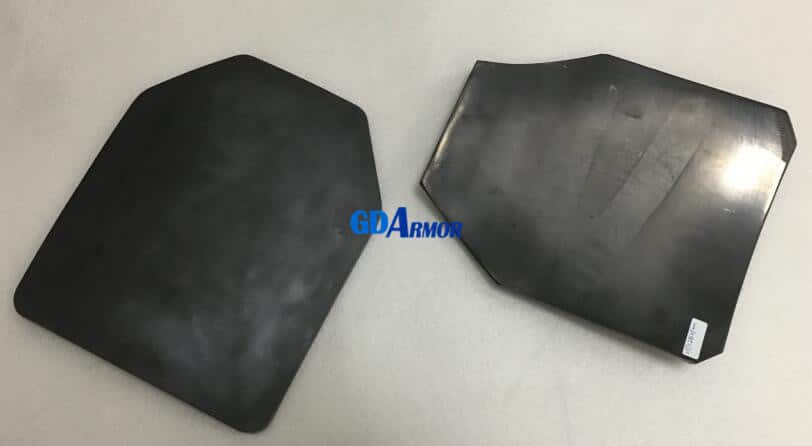

monolithic silicon carbide ceramic (20)

Specification of Aluminum Oxide Ceramic Tiles

aluminum oxide ceramic tiles (2)

Material: Aluminum Oxide (Al2O3)
Shape: Square, single arc, or Hexagonal
Specific gravity: greater than or equal to 3.84 g/cm3
Elastic modulus: 330 GPa
Porosity: less than or equal to 0.1%
Flexural strength: 320 MPa
Vickers hardness: 15 GPa
Fracture toughness: 2.3 Mpa.m1/2
Packing: carton, and pallet

Types of Monolithic Bulletproof Ceramic / Tiles

Shape:HexagonSquareRectangleSpecial (round or special cut)Monolithic – SingleMonolithic – Multi
Standard Size: D32, D3450x50mm25x50mm25x50mm220x270mm220x270mm
Option Structure:
Silicon Carbide (SiC):OptionOptionOptionOptionOptionOption
Aluminum Oxide (Al2O3):OptionOptionOptionOptionOption
Boron Carbide (B4C):OptionOption
Curve:FlatSingle or FlatSingle or FlatSingle or FlatSingle CurveMulti Curve
Special Size:Half45x45mm22.5x45mm22.5x45mm250x300mm or by order
Thickness:4mm / 6mm / 8mm / 9mm / 10mm / 12mm or by order6mm / 8mm / 9mm / 10mm / 12mm

Pictures of Monolithic Bulletproof Ceramic / Tiles

monolithic silicon carbide ceramic (18)

Monolithic Multi Curve

monolithic silicon carbide ceramic (6)

Monolithic Single Curve

silicon carbide ceramic tiles (2)

Silicon Carbide Tiles

bulletproof ceramic tiles and base plate

Aluminum Oxide Tiles

Application of Monolithic Bulletproof Ceramic / Tiles

Bulletproof ceramic is the necessary material for making NIJ level III+(RF2) and IV (RF3) bulletproof plates.

For more, see How to make a bulletproof plate?

bulletproof plate sic plate m size
