UHMWPE / Polyester Ropes 12 Strand

Additional information

Specification of UHMWPE / Polyester Ropes 12 Strand

The high-end jacketed UHMWPE / Polyester rope composed of a construction of an independent 12-strand UHMWPE core and high tenacity sheath of polyester. This double braided rope has higher strength, greater abrasion and UV resistance, lower stretch and creep than pure UHMWPE rope, which makes it ideal for all kinds of mooring applications.

The high-end jacketed UHMWPE / Polyester rope is used for most demanding mooring, towing, and lifting applications. The advanced equipment from Germany and Denmark and the mature technology in rope manufacturing account for its high quality and stability.

The high-end jacketed UHMWPE / Polyester rope forms an excellent alternative for steel wire rope situations requiring manual handling. Its feature of better handling is especially appropriate in trawling applications. The rope provides when replacing the trawl warps, headline, upper bridle lower bridle.

  • Material: UHMWPE Fiber Core With Polyester Cover
  • Construction: Double Braid (12 Strand UHMWPE core with polyester)
  • Core Melting Point: 150°C
  • Polyester Cover Melting Point: 265°C
  • Specific Gravity: 0.99, floating
  • Elongation: 3-4%
  • Water Absorption: 0% (None)
  • Spliced Strength: 10% Lower
  • Weight and length Tolerance: ±5%
  • Dry & Wet strength: Close to same
  • Abrasion Resistance: Excellent
  • Chemical Resistance: Excellent
  • UV Resistance: Excellent
  • Long Service Life
  • Non-rotation and anti-kinking
  • Easy to handle
  • Easy to inspect
  • Coil length: 220M (or by order)
  • Color: Red, or by order

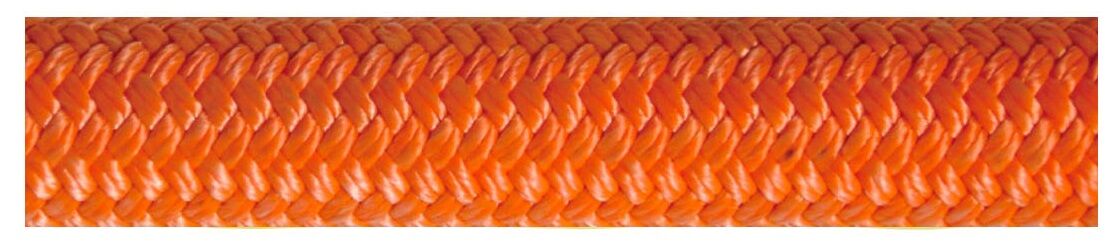

uhmwpe polyester rope 12

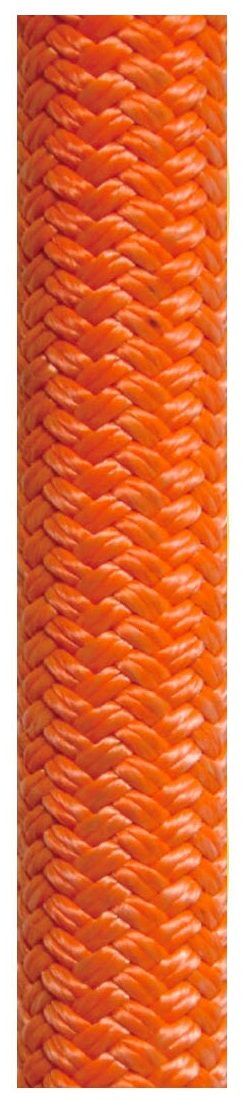

uhmwpe polyester rope 12 (1)
  • Lightweight and safer handling increased winching capability
  • Increased lift capacity
  • Soft contact surfaces torque neutral
  • Safe operations during use
  • Maintenance-free not affected by fresh or saltwater
  • Reduced risk of injuries

Application of UHMWPE / Polyester Ropes 12 Strand

  • Mooring
  • Towing & Tug Line
  • Hoisting & Lifting
  • Electrical Utility
  • Oil Drilling
  • Marine Rescue
