UHMWPE Ropes 8 / 12 Strand

Additional information

Specification of UHMWPE Ropes 8 / 12 Strand

The high-strength UHMWPE rope is used for most demanding mooring, towing, and lifting applications. The advanced equipment from Germany and Denmark and the mature technology in rope manufacturing account for its high quality and stability.

The high-strength UHMWPE rope is your optimal choice for diversified mooring applications for its properties of high strength, excellent abrasion resistance, high strength-to-weight ratio, extreme low elongation, and superior flex fatigue resistance.

The high-strength UHMWPE rope forms an excellent alternative for steel wire rope situations requiring manual handling. Its feature of better handling is especially appropriate in trawling applications. The rope provides when replacing the trawl warps, headline, upper bridle lower bridle.

  • Material: UHMWPE Fiber
  • Construction: 8 Strand, 12 Strand
  • Melting Point: 150°C
  • Specific Gravity: 0.97, floating
  • Elongation: 3-4%
  • Water Absorption: 0% (None)
  • Spliced Strength: 10% Lower

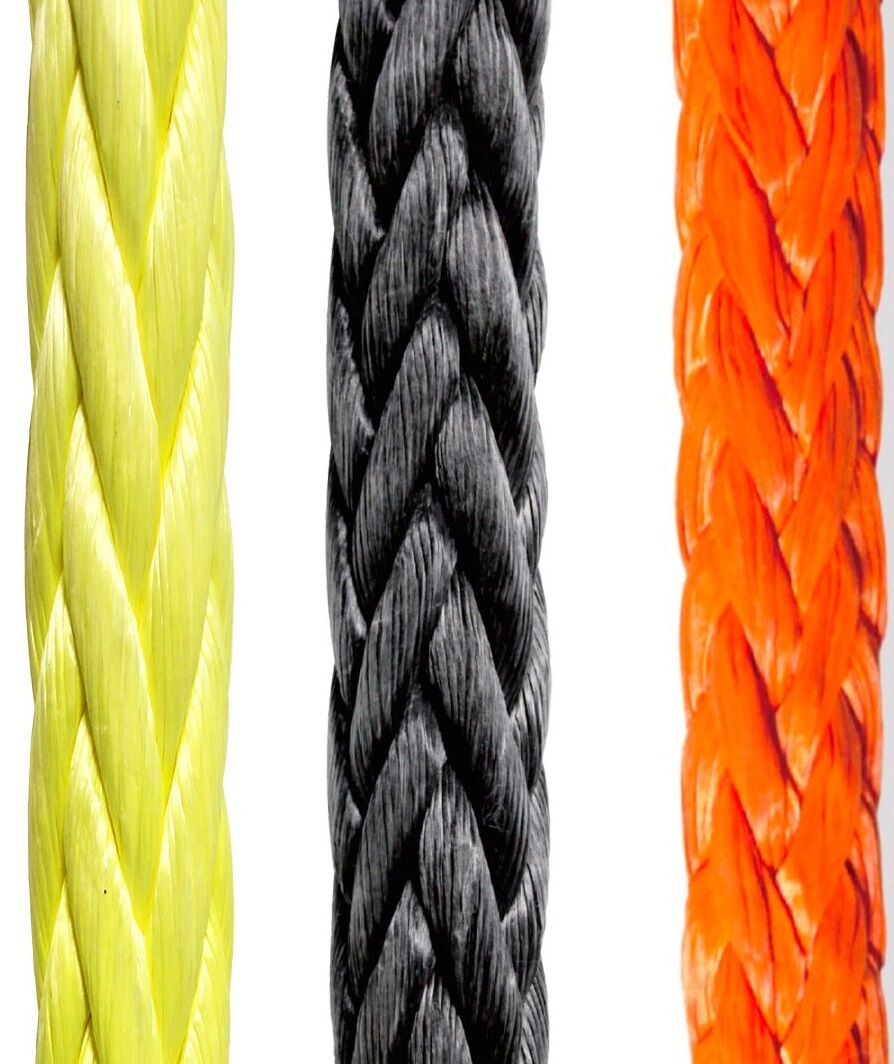

uhmwpe rope 12
uhmwpe rope 12 (4)
  • Lightweight and safer handling increased winching capability
  • Increased lift capacity
  • Soft contact surfaces torque neutral
  • Safe operations during use
  • Maintenance-free not affected by fresh or saltwater
  • Reduced risk of injuries
  • Weight and length Tolerance: ±5%
  • Elastic elongation at WLL: ±1%
  • Dry & Wet strength: Close to same
  • Abrasion Resistance: Excellent
  • Chemical Resistance: Excellent
  • UV Resistance: Excellent
  • Long Service Life
  • Non-rotation and anti-kinking
  • Easy to handle
  • Easy to inspect
  • Coil length: 220M (or by order)
  • Color: Yellow, blue, red, or by order
  • Physical properties: refer to UHMWPE fiber
uhmwpe rope 12 (5)
uhmwpe rope 12 (2)

Application of UHMWPE Ropes 8 / 12 Strand

  • Mooring
  • Towing & Tug Line
  • Hoisting & Lifting
  • Electrical Utility
  • Oil Drilling
  • Marine Rescue
