Woven Aramid Fabric made from 100% para-aramid fiber with 50g/m2, 100g/m2 up to 450g/m2 in Plain, Twill for Aramid Helmet & Bulletproof Vest

Additional information

Specification of Woven Aramid Fabric

Aramid fabric made from branded aramid fiber like Kevlar®, Twaron®, and weaving in plain, twill, or satin

It is a new synthetic fiber with high strength and modulus.Its weight is 1/5 of steel, strength is 5-6 times of steel, modulus is 2-3 times of steel, tenacity is 2 times of steel. It is weaved mainly by para-aramid fiber 200D 400D 600D 800D 1000D 1500D 3000D.

  • Good performance of insulation
  • Heat resistance
  • Aging resistance
  • Flame retardant
  • Spinnability
  • High strength, High modulus
  • Strong toughness, corrosion resistance, Good knitting

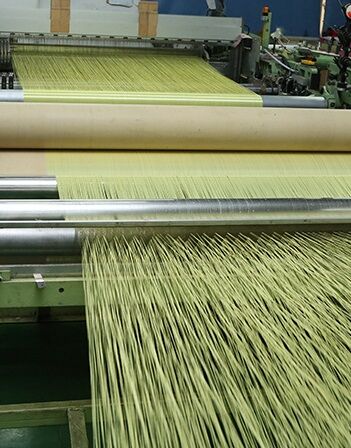

aramid fabric line (2)

Types of Woven Aramid Fabric

Model
PA50
PA80
PA100
PA115
PA140
PA160
PA200
PA220
PA300
PA410
PA450
Denier
200D
400D
600D
800D
1000D
1000D
1000D
1500D
3000D
3000D
3000D
Warp
13.5
12
8
7
6
7
9
6.5
4.5
6
6.5
Weft
13.5
12
8
7
6
7
9
6.5
4.5
6
6.5
Thickness
≈0.08mm
≈0.14mm
≈0.15mm
≈0.16mm
≈0.22mm
≈0.24mm
≈0.26mm
≈0.28mm
≈0.4mm
≈0.65mm
≈0.7mm
Area Density(m2)
≈50g
≈80g
≈100g
≈115g
≈140g
≈160g
≈200g
≈220g
≈300g
≈410g
≈450g
Weave Structure
Plain
Plain
Plain
Plain
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Plain (or Twill)
Raw Material100% Para-Aramid Fiber
Resin CoatNo coat as standard (or backside coat make to order)
Roll Width1-3 meter make to order
Roll Length50+ meters continuous in roll
Designed For:Soft Armor, Bulletproof Vest, Soft Inserts, Helmet / Hard Plate / Vehicle Panel

Application of Woven Aramid Fabric

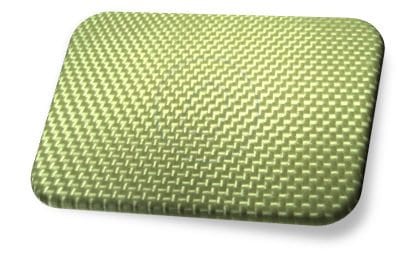

aramid fabric panel

Main using for:

  • Aramid Bulletproof Helmet
  • Aramid  Armored Vehicle Panel
  • Aramid soft armor vest
  • Aerospace
  • Electro mechanic equipment
  • Building reinforcement
  • Auto Part
  • Sports equipment
bulletproof helmet shell (1)
