UHMWPE Fabric made from 100% UHMWPE fiber with 100g/m2, 200g/m2 up to 410g/m2 woven in Plain, Twill for Ballistic Helmet & Cut Resistant Clothing

Additional information

Specification of Woven UHMWPE Fabric

Ultra-high molecular weight polyethylene (UHMWPE) fiber is known as high strength and high modulus polyethylene fiber. its specific strength is ten times more than steel and its specific modulus is only less than super carbon fiber, It has good performance of high strength, high modulus, low elongation at break, impact resistance, cutting resistance,anti-ultraviolet radiation, chemical resistance, abrasion resistance, and other characteristics.

UHMWPE fabric can be made by 200D, 400D, 600D, 800D, 1000D, 1500D, 3000D UHMWPE fiber as a material with weave style plain, twill, and satin, Its application mainly includes anti-cut gloves, clothes, bags, sports equipment, ropes, sailes, filter, and cables.

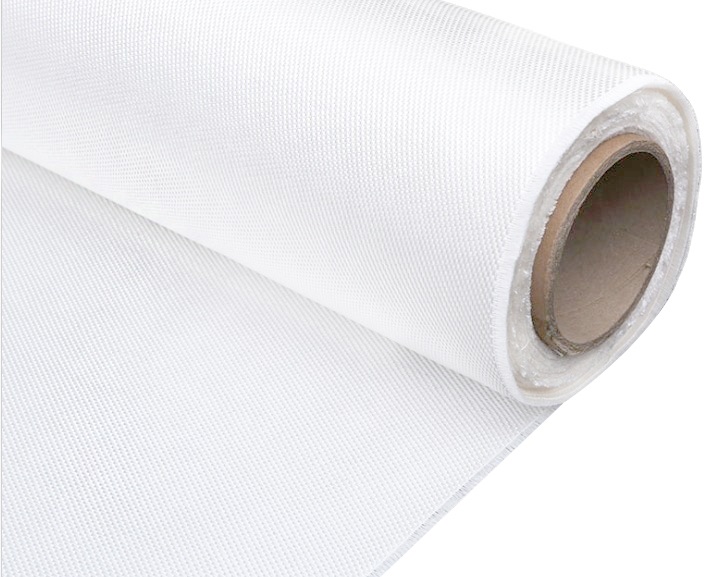

woven uhmwpe fabric (3)
Model
PE100
PE140
PE200
PE170
PE240
PE345
PE410
Denier
200D
400D
600D
800D
1000D
1500D
3000D
Warp
22
14
15.5
9.5
10
10
3
Weft
17.5
14
12
8.5
9
7.5
3
Thickness
≈0.21mm
≈0.25mm
≈0.42mm
≈0.39mm
≈0.48mm
≈0.72mm
≈0.88mm
Area Density(m2)
≈100g
≈140g
≈200g
≈170g
≈240g
≈345g
≈410g
Weave Structure
Plain
Plain
Plain
Plain
Plain
Plain
Plain
Raw Material 100% UHMWPE Fiber
Resin Coat No coat as standard (or backside coat make to order)
Roll Width 1-3 meter make to order
Roll Length 50+ meters continuous in roll
Designed For: Protective Clothing / Ballistic Helmet

Application of Woven UHMWPE Fabric

woven uhmwpe fabric (1)

Main using for:

  • PE Bulletproof Helmet
  • PE Armored Vehicle Panel
  • PE soft armor vest

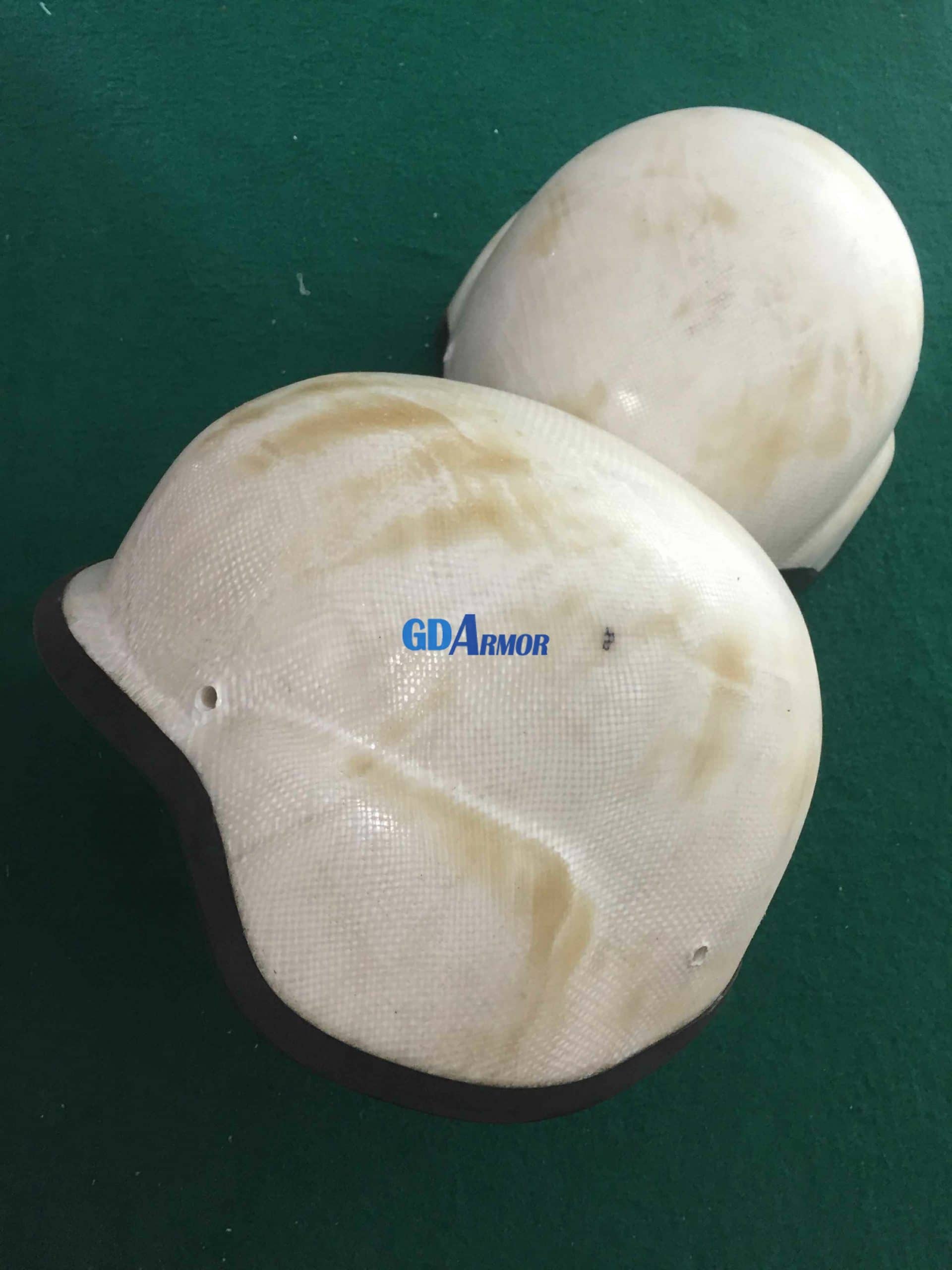

PE Bulletproof Helmet
