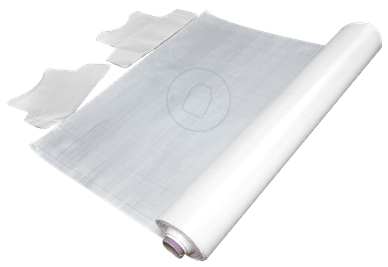

HPPE Bulletproof Fabric / SB130 UHMWPE UD made from 0/90/0/90 (4) Uni-directional structure high-tenacity UHMWPE fiber for Body Armor Manufactory making Soft Armor Bulletproof Vest, Ballistic Insert and weight around 130g/m2 since 2009

SB130 HPPE bulletproof fabric / UHMWPE UD is made from 35cN/dtex (~40g/D) UHMWPE fiber and main for soft bulletproof vest application. It is using 4 plies Uni-Directional (0/90/0/90 UD) structure which is well known best for anti-ballistic fabrics today. The weight per square meter for NIJ 0101.06 level IIIA protection only needs around 5.6kg after being tested.

Additional information

Model Number

SB130

Raw Material

UHMWPE fiber

Tenacity

More than 35cN/dtex (~40g/D)

Area Density

130g/m2

Structure

4 ply UD (0/90/0/90)

Status

Film cover on both sides

Width

1.2 meters

Length

100+ meters in roll

Application

Soft Bulletproof Vest

Specification of HPPE Bulletproof Fabric, UHMWPE UD

The bulletproof fabric is made from high-strength UHMWPE fiber with a Uni-Directional (UD) structure. The high-strength UHMWPE fiber has good performance when against the impact of the high velocity of bullets and, the UD structure can transfers the power quickly than women fabric in a short time. For more, see How to make bulletproof fabric / UHMWPE UD?

HPPE UD Bulletproof Fabric Line
bulletproof vest ud fiber

The UHMWPE fiber used for SB130 is 400D as standard. Its tenacity is over 36cN/dtex today which is the best solution for high performance and lightweight bulletproof fabric / UHMWPE UD. Below is the history of SB130.

  • 2007   ->   28cN/dtex   ->  49 layers for NIJ IIIA .44 magnum
  • 2009   ->   30cN/dtex   ->  46 layers for NIJ IIIA .44 magnum
  • 2013   ->   32cN/dtex   ->  43 layers for NIJ IIIA .44 magnum
  • 2015   ->   34cN/dtex   ->  40 layers for NIJ IIIA .44 magnum
  • 2019   ->   36cN/dtex   ->  37 layers for NIJ IIIA .44 magnum

For more, see What is Ultra High Molecular Weight Polyethylene Yarn?

HPPE Bulletproof Fabric

Certificate of HPPE Bulletproof Fabric, UHMWPE UD

bulletproof test sample 01 sb130 46

46 layers

2007 tested by .44 Magnum

bulletproof test sample 02 sb130 44

44 layers

2009 tested by .44 Magnum

bulletproof test sample 03 sb130 42

42 layers

2011 tested by .44 Magnum

bulletproof tested sample 1433

40 layers

2013 tested by .44 Magnum

HPPE Fabric of Bulletproof Vest

37 layers

2019 tested by 7.62x25mm TT

Application of HPPE Bulletproof Fabric, UHMWPE UD

That has different using of UHMWPE UD bulletproof fabric and main for making bulletproof soft armor vest when used together with anti-trauma foam. It is easy to cut by laser or another professional cutter and can add more layers than the minimum to reduce deformation if required. Below are reference layers or area densities for some protected levels. For more, see How to make a bulletproof vest?

  • 29-33 layers (>3.8kg/m2) for NIJ 0101.04 IIIA 9mm protection
  • 37-43 layers (>4.8kg/m2) for NIJ 0101.06 IIIA .44 magnum protection
  • 37 layers (>4.8kg/m2) for 7.62×25 TT (lead core)  @ 445m/s protection
  • 43 layers (>5.6kg/m2) for 7.62×25 TT (lead core)  @ 515m/s protection
guodun soft armor panel (12)
